Standard 3D printers, typically limited to a 250x250x250mm build volume, often fall short for makers needing larger prints. Large-format 3D printers promise expanded creative possibilities, but they introduce complexities like inconsistent quality or maintenance challenges. The QIDI X-MAX3 3D Printer aims to address this with a 325x325x315mm build volume, high-speed printing, and a fully enclosed design. After testing it on a series of decor-focused projects, including a scaled-up wall panel, I found it delivers impressive results but stumbles in critical areas.
Affiliate Disclosure
We participate in Amazon affiliate programs, earning fees from qualifying purchases via links at no extra cost to you. It’s how we keep this blog rolling and my 3D printers buzzing with fresh filament for reviews like this one!
This QIDI X-MAX3 3D Printer Review evaluates it’s technical capabilities, performance, and shortcomings for professionals and hobbyists.
QIDI X-MAX3 3D Printer Review
Technical Specifications
The QIDI X-MAX3 3D Printer is engineered for large-scale, high-speed printing. Key specifications include:
| Specification | Details |
|---|---|
| Build Volume | 325x325x315mm (12.8×12.8×12.4 inches), suitable for oversized decor and prototypes |
| Print Speed | Maximum 600mm/s, 20,000mm/s² acceleration; typical speed 300mm/s for stable output |
| Frame | All-metal with a 6mm aluminum heatbed plate, ensuring structural integrity |
| Firmware | Klipper with input shaping and pressure advance to minimize vibrations and optimize flow |
| Auto-Leveling | 64-point system for consistent first-layer adhesion |
| Filament Compatibility | PLA, ABS, ASA, PETG, TPU, PC, PA, carbon fiber, glass fiber, supported by a 65°C heated chamber |
| Nozzle | Copper alloy and hardened steel (spare included), with a 120°C build plate maximum |
| Power Consumption | 250 Watts, efficient for its class |
| Dimensions | 55.3×55.3×60.1cm, 65lbs, requiring a dedicated workspace |
| Connectivity | Wi-Fi, Ethernet, USB for reliable file transfers |
The Klipper firmware leverages advanced algorithms like input shaping to reduce ringing and pressure advance to stabilize extrusion, enabling high-speed printing without sacrificing detail. The vertically lowering print bed enhances stability compared to oscillating designs. For filament selection, refer to our filament compatibility guide.
View the QIDI X-MAX3 on Amazon
Performance and Print Quality

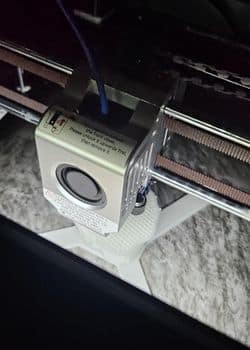

The QIDI X-MAX3 3D Printer excels in large-scale printing. A 200% scaled architectural model printed at 300mm/s showcased precise details, with minimal stringing and clean bridging. Surface quality rivaled smaller printers, though a 0.2mm tolerance test revealed slight inaccuracies, a challenge for high-speed, large-format machines.
Smaller models performed adequately, but multi-model prints exposed a 5°C heatbed temperature variation, causing warping in some instances. This inconsistency, detected via thermal imaging, complicates batch printing. A single large print, such as a decor panel, yielded better results, especially with post-processing like spray paint for outdoor durability.

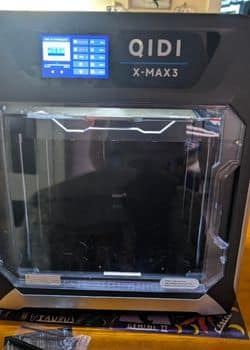

The enclosed chamber and 65°C heating supported high-temperature filaments like ABS, while the hardened steel nozzle handled carbon fiber PLA reliably after an initial clog due to cold workshop conditions. Swapping the hot end was straightforward, but such maintenance underscores the need for controlled environments. For maintenance tips, see our 3D printer maintenance guide.
Pros and Cons
Pros
✅ Large Build Volume: 325x325x315mm accommodates substantial decor and prototyping projects.
✅ High-Speed Capability: 600mm/s maximum speed, with stable 300mm/s output, reduces print times.
✅ Filament Versatility: Supports PLA to carbon fiber, enhanced by a heated chamber.
✅ Robust Construction: All-metal frame ensures durability and stability.
✅ Enclosed Design: Improves safety and consistency for high-temperature filaments.
Cons
❌ No Power Loss Recovery: Critical oversight for long prints, risking significant material loss.
❌ Inconvenient Spool Holder: Rear placement complicates filament changes, requiring machine repositioning.
❌ Subpar Fit and Finish: Peeling trim and thin plastic enclosure detract from premium feel.
❌ Heatbed Inconsistency: 5°C temperature variation affects multi-model prints.
❌ Noise and Weight: High-speed fans increase noise; 65lbs demands a sturdy setup.
The absence of power loss recovery is particularly egregious. A 20-hour print failed at 95% due to a brief power outage, wasting nearly a full filament roll ($25). Competitors like Creality and Anycubic include this feature, making QIDI’s omission unacceptable for a $899 printer. Noise issues can be mitigated; explore our 3D printer enclosures guide.
View the QIDI X-MAX3 on Amazon
Comparison to Competing 3D Printers
The QIDI X-MAX3 3D Printer faces stiff competition. Below is a comparison with the Creality K1 Max, Anycubic Kobra S1 Combo, and QIDI Plus4:
| Feature | QIDI X-MAX3 | Creality K1 Max | Anycubic Kobra S1 Combo | QIDI Plus4 |
|---|---|---|---|---|
| Build Volume | 325x325x315mm | 300x300x300mm | 250x250x250mm | 305x305x305mm |
| Max Print Speed | 600mm/s | 600mm/s | 500mm/s | 600mm/s |
| Filament Compatibility | PLA, ABS, TPU, PC, CF, GF | PLA, ABS, PETG, TPU | PLA, ABS, PETG, TPU | PLA, ABS, TPU, PC, CF |
| Auto-Leveling | 64-point | Yes | 25-point | 64-point |
| Heated Chamber | Up to 65°C | No | No | Up to 65°C |
| Power Loss Recovery | No | Yes | Yes | No |
| Price | $899 | $899 | $599 | $999 |
- Creality K1 Max ($899): Matches the QIDI X-MAX3’s speed but lacks a heated chamber, limiting filament options. Power loss recovery is a key advantage. Read our Creality K1 Max review.
View the Creality K1 Max - Anycubic Kobra S1 Combo ($599): Affordable with power loss recovery, but its smaller 250x250x250mm volume and lack of heated chamber restrict versatility. See our Anycubic Kobra S1 Combo review.
View the Anycubic Kobra S1 Combo - QIDI Plus4 ($999): Nearly identical to the QIDI X-MAX3 but with a 305x305x305mm volume. It shares the power loss recovery flaw but costs less. Check our QIDI Plus4 review.
View the QIDI Plus4
Which Printer to Choose?
- QIDI X-MAX3 3D Printer: Best for large-scale decor or prototyping with advanced filaments, but power loss recovery absence is a dealbreaker for long prints.
- Creality K1 Max: Ideal for budget-conscious users needing speed and reliability, though limited to standard filaments.
- Anycubic Kobra S1 Combo: Suits beginners or small projects, lacking the QIDI X-MAX3’s scale and filament range.
- QIDI Plus4: A cost-effective alternative to the QIDI X-MAX3 with similar features but reduced build volume.
For decor applications like large vases or panels, the QIDI X-MAX3’s build volume and heated chamber are compelling, but its flaws demand careful consideration. Explore decor ideas in our 3D-printed home decor guide.
Rating Comparison
| Printer | Speed | Build Volume | Filament Versatility | Reliability | Overall Rating |
|---|---|---|---|---|---|
| QIDI X-MAX3 | ★★★★★ | ★★★★★ | ★★★★★ | ★★★☆☆ | ★★★★☆ |
| Creality K1 Max | ★★★★★ | ★★★★☆ | ★★★★☆ | ★★★★★ | ★★★★☆ |
| Anycubic Kobra S1 Combo | ★★★★☆ | ★★★☆☆ | ★★★☆☆ | ★★★★☆ | ★★★☆☆ |
| QIDI Plus4 | ★★★★★ | ★★★★☆ | ★★★★★ | ★★★☆☆ | ★★★★☆ |
The QIDI X-MAX3 3D Printer scores high for speed and versatility but loses points for reliability due to power loss recovery and heatbed issues.
FAQs
Is the QIDI X-MAX3 suitable for beginners?
Its setup is straightforward, but advanced features and maintenance needs favor experienced users. Beginners should consider the Anycubic Kobra S1 Combo. See our best beginner 3D printers.
What filaments does the QIDI X-MAX3 support?
It handles PLA, ABS, PETG, TPU, PC, PA, carbon fiber, and glass fiber, with a heated chamber for high-temperature materials. Refer to our filament compatibility guide.
How noisy is the QIDI X-MAX3?
High-speed fans generate noticeable noise, particularly during extended prints. A 3D printer enclosure can reduce sound levels.
Why is power loss recovery missing?
QIDI relies on Klipper firmware, which lacks native power loss recovery, and has not implemented a proprietary solution, unlike competitors.
How reliable is QIDI’s support?
QIDI offers responsive 24/7 support with rapid part replacements, earning high user praise for service quality.
Conclusion: A Flawed but Capable Large-Format Printer
The QIDI X-MAX3 3D Printer offers a compelling package: a 325x325x315mm build volume, 600mm/s speed, and compatibility with advanced filaments like carbon fiber. Its enclosed design and Klipper-driven precision make it a strong choice for large-scale decor and prototyping. However, the lack of power loss recovery, poorly placed spool holder, and substandard fit and finish undermine its $899 price tag. Compared to the Creality K1 Max ($899, with power loss recovery) and QIDI Plus4 ($999, similar features), the QIDI X-MAX3’s advantages are tempered by reliability concerns.
For professionals prioritizing large, high-quality prints and willing to manage its quirks, the QIDI X-MAX3 3D Printer is a worthy contender. Others may find better value elsewhere. Weigh your needs carefully before investing.
