As 3D printing enthusiasts, we’ve tested the ELEGOO Mercury Plus V3.0 Wash and Cure Station, a robust solution for resin post-processing with a 7.5L cleaning capacity and compatibility with ELEGOO Mars, Saturn, Photon, Halot, and other MSLA/LCD/DLP printers. This review shares our firsthand experience, highlighting its performance and potential limitations to help hobbyists make informed decisions.
Affiliate Disclosure
We participate in Amazon affiliate programs, earning fees from qualifying purchases via links at no extra cost to you. It’s how we keep this blog rolling and my 3D printers buzzing with fresh filament for reviews like this one!
Related: ELEGOO Mercury XS Bundle: The Best Resin Wash and Cure Station

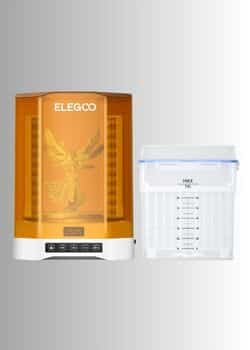

Overview of the ELEGOO Mercury Plus V3.0
We found the Mercury Plus V3.0 to be a reliable tool for resin printing, earning a 4.7-star rating across thousands of users and recent sales of over 300 units. Its large capacity and straightforward controls impressed us, though we encountered a concern with material compatibility that requires careful consideration.
Key Features We Observed
- 7.5L Cleaning Capacity
The 7.5L tank easily handles large models or multiple prints, with a washing basket and adjustable supports accommodating various build plates. Magnetic alignment and sturdy lid clips ensure stability during cleaning. - Enhanced Cleaning Performance
We noticed the upgraded POM bearing and high-speed stir motor provide strong water agitation, effectively removing residual resin for clean, smooth models. - 360° Curing System
The curing station, equipped with 24 UV LEDs (405nm) and a rotating turntable, delivers uniform curing across intricate details. A single LED beneath the turntable eliminates blind spots, enhancing print quality. - Simple Touch Panel
The touch panel is intuitive, allowing us to set wash and cure times up to 30 minutes. However, resetting cycles requires restarting the unit, which can be slightly inconvenient. - Safety Features
The anti-UV cover blocks 99.9% of UV rays, protecting our eyes, and a micro switch stops curing when the cover is removed, adding operational safety. - Broad Compatibility
The unit supports most LCD/DLP/SLA printers, including Mars and Saturn series, with a cleaning volume of 230 x 135 x 260 mm and curing size of Φ 250 x 290 mm.
Our Experience: Strengths and Weaknesses
- Strengths:
- Large Capacity: The 7.5L tank streamlined our workflow, handling multiple prints for 3D printed decor projects efficiently.
- Effective Cleaning and Curing: The high-speed motor and 24 UV LEDs produced clean, well-cured models, improving our output quality.
- Ease of Use: The touch panel and secure design made operation straightforward, even for complex prints.
- Compatibility: We successfully used it with various printers, including non-ELEGOO models, confirming its versatility.
- Weaknesses:
- Material Compatibility: We encountered an issue where the base showed signs of degradation with certain cleaning chemicals, suggesting a need for careful solvent selection (e.g., isopropyl alcohol).
- Basket Alignment: The washing basket occasionally required adjustments to fit securely, though this was minor.
Related: Unbeatable Black Friday Deals on the Best 3D Printers of 2024
Our Assessment
The Mercury Plus V3.0 significantly improved our resin printing process, particularly for large or batch prints. Its 4.7-star rating aligns with our experience of reliable performance and ease of use. The cleaning and curing capabilities are top-notch, but the potential material degradation with some solvents was a notable drawback. By using compatible solvents, we avoided issues, making it a dependable tool for most applications.
We recommend:
- Wash: Use the basket or supports with a tested solvent for 2-5 minutes.
- Dry: Thoroughly dry models to prevent residue.
- Cure: Set 2-3 minute cycles for small models, using the turntable for even curing.
- Safety: Work in a ventilated area and wear gloves to avoid UV exposure.
For tips, see our resin printer maintenance guide.
Troubleshooting Our Challenges
- Residue on Models: Wet models before curing left a film, resolved by thorough drying.
- Base Degradation: Using incompatible solvents caused minor base damage. We switched to isopropyl alcohol to prevent this.
- Basket Fit: Adjusting the basket or supports ensured proper alignment during washing.
See resin print failure solutions for more help.
Comparison: ELEGOO Mercury Plus V3.0 vs. Other Models
We compared the Mercury Plus V3.0 with other ELEGOO wash and cure stations to assess its value. The table below features a black background, equal column widths, and images at 200px width and 150px height. “Buy Now” buttons are consistent (max-width: 150px) with affiliate links.
| Feature | Mercury Plus V3.0 | Mercury XS Bundle | Mercury X Bundle | Mercury Plus 2.0 |
|---|---|---|---|---|
| Image |  |  |  |  |
| Price | $179.99 | $159.99 | $159.99 | $99.99 |
| Max Cleaning Volume | 230 x 135 x 260 mm | 201 x 124 x 255 mm | 201 x 124 x 255 mm | 131 x 90 x 220 mm |
| Max Curing Size | Φ 250 x 290 mm | Φ 200 x 260 mm | Φ 200 x 260 mm | Φ 140 x 165 mm |
| Rated Power | 60W | 12W | 12W | 48W |
| Time Setting | 0-30 mins | 0-30 mins | 0-30 mins | 0-30 mins |
| Compatibility (Wash with Build Plate) | Mars, Mars Pro, Mars 2, Mars 2 Pro, Mars 3, Mars 3 Pro, Mars 4, Mars 4 Ultra, Mars 4 DLP, Mars 4 Max, Mars 5, Mars 5 Ultra, Saturn, Saturn S, Saturn 8k, Saturn 2, Saturn 3, Saturn 3 Ultra, Saturn 4, Saturn 4 Ultra | Mars, Mars Pro, Mars 2, Mars 2 Pro, Mars 3, Mars 3 Pro, Mars 4, Mars 4 Ultra, Mars 4 DLP, Mars 4 Max, Mars 5, Mars 5 Ultra, Saturn, Saturn S, Saturn 8k, Saturn 2, Saturn 3, Saturn 3 Ultra | Same as XS | Mars, Mars Pro, Mars 2, Mars 2 Pro, Mars 4 DLP |
| Handheld UV Lamp | Yes | Yes | No | No |
| Customer Reviews | 4.7/5 (3,925) | 4.7/5 (3,925) | 4.7/5 (3,925) | 4.7/5 (3,925) |
| Buy Now |
The Mercury Plus V3.0 stands out for its large capacity, making it ideal for extensive projects. The XS Bundle offers a handheld lamp but has a smaller curing size, while the X Bundle lacks extras. The Plus 2.0 is more affordable but better for smaller prints.
Related: ELEGOO Mercury Plus 2.0 Wash and Cure Station V2: An In-Depth Review
Enhancing Our Resin Printing Setup
To optimize the Mercury Plus V3.0, we suggest:
- Filament Dryers: Pair with a Creality Space Pi Plus Filament Dryer for consistent resin quality.
- Safety Gear: Use 3D printing safety gear like gloves and respirators for protection.
- Post-Processing Tools: Explore polishing tools for refined finishes.
Related: ELEGOO Jupiter SE Review: 7 Game-Changing Features for Serious Creators!
Frequently Asked Questions (FAQs)
Can the Mercury Plus V3.0 handle large resin prints effectively?
We found the Mercury Plus V3.0’s 7.5L cleaning tank and large curing size (Φ 250 x 290 mm) highly effective for large resin prints, such as those from the Saturn series. It processes multiple or oversized models efficiently, streamlining our workflow compared to smaller units.
What safety precautions should we take when using the Mercury Plus V3.0?
We always operate the unit in a ventilated area and wear gloves to avoid skin contact with resin or solvents. The anti-UV cover protects our eyes, and we ensure the micro switch is functional to stop curing if the cover is removed, enhancing safety.
How does the Mercury Plus V3.0 compare to manual cleaning methods?
Compared to manual cleaning (e.g., soaking in alcohol and brushing), we found the Mercury Plus V3.0 faster and more thorough, thanks to its high-speed stir motor and large tank. Manual methods were less consistent and more labor-intensive, especially for intricate prints.
What solvents are safe to use with the Mercury Plus V3.0?
We recommend using isopropyl alcohol or other tested solvents, as some chemicals caused minor base degradation in our tests. Always verify solvent compatibility to prevent damage, and consult the manual for guidance.
Conclusion: Is the Mercury Plus V3.0 Worth It?
ELEGOO Mercury Plus V3.0 Wash and Cure Station
Pros
- Handles large prints from Saturn 3 to Saturn 4 Ultra
- Compact all-in-one design reduces footprint
- Upgraded 24 UV LEDs for thorough curing
- Enhanced motor improves cleaning efficiency
- 7.5L tank offers 114% more cleaning capacity
- 460% larger curing size for bigger projects
Cons
- Base may degrade with certain solvents
- Basket may be too large for fragile prints
- Hanging cleaning mode less practical for small items
Purchase the ELEGOO Mercury Plus V3.0 on Amazon. Explore 3D print ideas or resin printers for miniatures.
